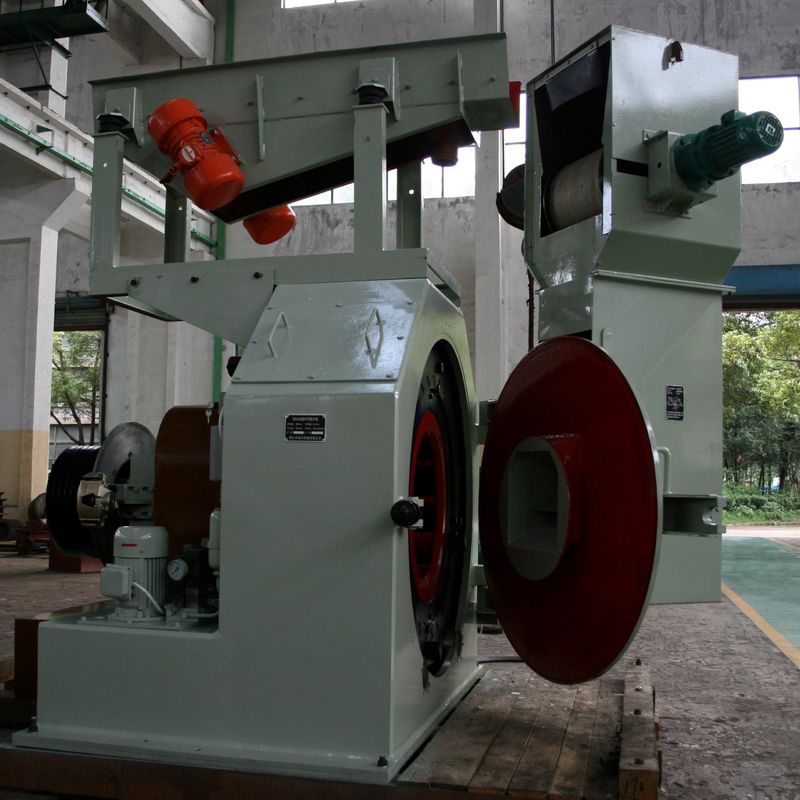

Flakes Making Knife Ring Flaker Paticle Board Pb Line

800 mm 1.5~3 Tons Per Hour Flakes Making Knife-Ring Flaker for Paticle Board Production Line

0.7~14 Tons Per Hour Flakes Making Knife-Ring Flaker for Paticle Board Production Line

Description

The knife-ring flaker machine is one of the main machines in the preparation section of particle board production.

After the chipper cuts wood chips, bamboo chips, broken veneer, etc. into certain specifications of flakes, the knife-ring flaker makes them into flakes with certain thickness that meet the process requirements, which are used as raw materials for particle board. The flaker has formed a series of products with various specifications of knife ring diameters from 800 to 1600, which can meet the needs of particleboard production lines with an annual output of 30,000-450,000 m³.

Besides the flake capacity and flake quality, PALLMANN has also put the safe operation and protection of the machine central. All machine components which are in direct contact with the flake material, are exchangeable and therewith protect the base frame of the machine. Special designs have been developed for the knife ring and the impeller as well as for the machine housing.

Quality and flake consistency are decisive for the board quality and are therefore crucial development criteria. PALLMANN flakers are flexible and individually adaptable to your flaking requirements.

Structure of knife-ring flaker

1 Multi-stage structure for heavy object separator which will seperate wood chips with lenth of 60~120mm.

2 The adjustment device for wind to make the suspension wind speed the same.

3 Distribute wood chips uniform across the width of the knife ring.

4 Effectively control the protruding amount of the flying knife and the gap between the knife door to ensure uniform thickness of flakes.

5 New type of impeller to lower the enger consumption.

Main technical data
