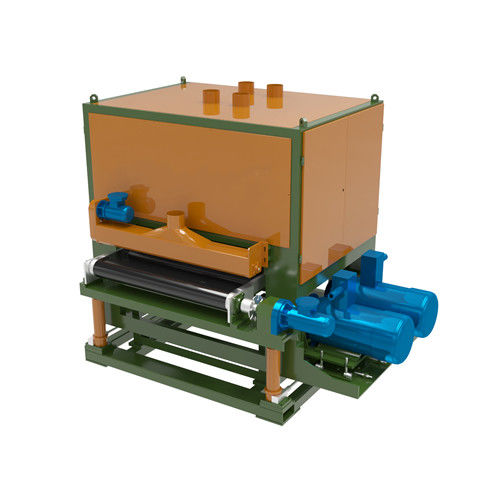

Fully Automatic Plywood Sanding Machine
| Staggered inclined double sided four head sanding machine for calibration | |
| Processing width | ≤1300mm |
| Processing length | ≥1500mm |
| Belt motor | 75kw*4 |
| Belt size | 2800*1350mm |
| Hoist power | 2.2KW |
| Regular air pressure | 0.6~0.8MPa |
| Compressed air consumption | 0.2m³/min |
| Wind speed and volume | 20~30m/s,38000m³/h |
| Thickness opening | 0~100mm |
| Machining accuracy | ±0.08mm |
| Belt speed | 24m/s |
| Oblique angle of sand fram | 15° |
| Frequency control | 10~30m/min |
| Motor Power | 11kw*2 |
| Equipment Dimensions | 5700*3200*3100mm |
| Total weigh | 38.5T |
| Inclined single-sided two head sanding machine | |
| Processing width | ≤1300mm |
| Processing length | ≥1300mm |
| Belt motor | 55kw+45kw |
| Belt size | 2620*1320mm |
| Hoist power | 1.1KW |
| Regular air pressure | 0.8±0.1MPa |
| Compressed air consumption | 1m³/min |
| Wind speed and volume | 20~30m/s,18000m³/h |
| Thickness opening | 0~155mm |
| Machining accuracy | ±0.1mm |
| Belt speed | 24m/s |
| Intersection angle of two sand racks | 15° |
| Frequency control | 6~25m/min |
| Motor Power | 11kw |
| Equipment Dimensions | 3000*3010*2500mm |
| Total weight | 16T |
