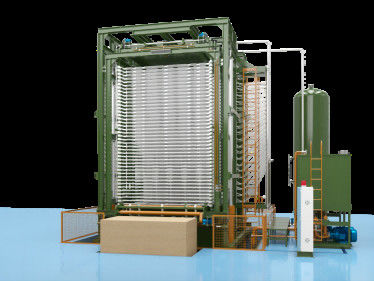

The fully automatic 40-layer hot press is a highly efficient thermal pressing equipment, especially suitable for high-volume, high-precision, and high-quality board thermal pressing processing. It adopts advanced automation control technology to achieve precise temperature control, pressure control, and time control, thereby ensuring the quality and stability of the finished product.
1,Fully Automatic Operation: The fully automatic operation of this hot press enables the entire process, from material placement, heating, pressure application, to cooling and forming, to be carried out automatically. This significantly boosts production efficiency, reduces manual intervention, simplifies operation, and minimizes production errors caused by human factors.
2,40-Layer Structure: The machine's 40-layer design allows for simultaneous processing of multiple layers of material, further enhancing production efficiency. This multi-layer configuration is often suitable for large-scale, continuous production lines that need to meet high capacity demands.
3,Product Size: With a product size of 4*8 feet, this hot press is suitable for manufacturing products within this specific size range or similar dimensions. These thermally pressed products may find widespread applications in industries such as construction, furniture, and decoration.
4,Dual-Inlet and Dual-Outlet Intake System: The hot press steel plate utilizes a dual-inlet and dual-outlet intake system, which contributes to more uniform and efficient heat distribution. This design ensures that each layer of material receives adequate heating and pressure, thereby improving product quality and consistency.
5,Total Weight of 98 Tons: The equipment's total weight of 98 tons indicates its sturdy construction, capable of withstanding high pressure and temperature working environments. This also reflects the reliability of the materials and manufacturing processes used in its construction.
| Name | JDRY-800T-40L |
| Nominal pressure | 8000 KN |
| Platen size | L:2700*W:1370*H:42mm |
| Feeding mode | Double in and out |
| Product size (mm) | 4*8feet:1220*2440mm 1pcs |
| Max. opening space | 70 mm |
| Number of layers | 40 layers |
| Diameter and number of cylinder (mm) | φ320*2950mm*4 pcs |
| Working stroke(mm) | 2800mm |
| Working pressure(kg/cm²) | 21kg/cm² |
| Closing speed(m/min) | 15m/min |
| Overall size(mm) | L:3590*W:1370*H:7700mm |
| Nitrogen tank size | φ1440*6620mm (9m³)1pcs |
| Weight of nitrogen tank | 4900kg |
| Hydraulic station size | L:3200*W:1500*H:2800mm |
| Tank volume | 7m³ |
| Total weight of hydraulic station | 5800kg |
| Low pressure pump motor | 22KW*2 pcs |
| High-pressure pump motor | 5.6KW*1 pcs |
| Elevator motor | 2.2KW*1 pcs |
| Installation power(kw) | 51.8KW |
| Height of workshop | 7500mm |
| Depth of foundation pit | 5750mm |
| Total weight | 98T |
