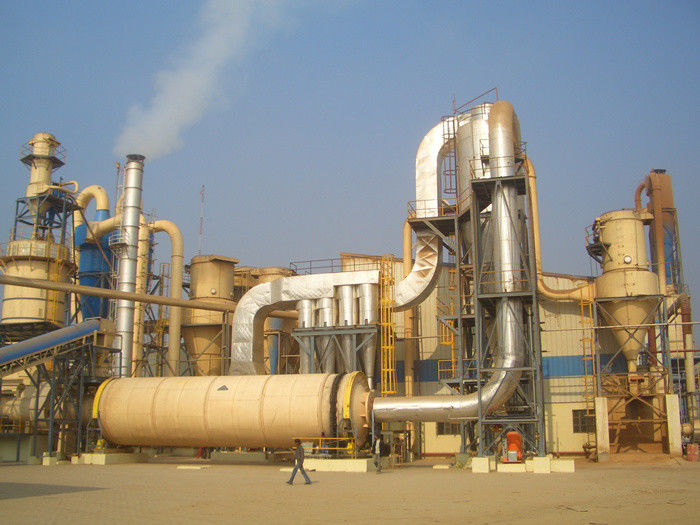

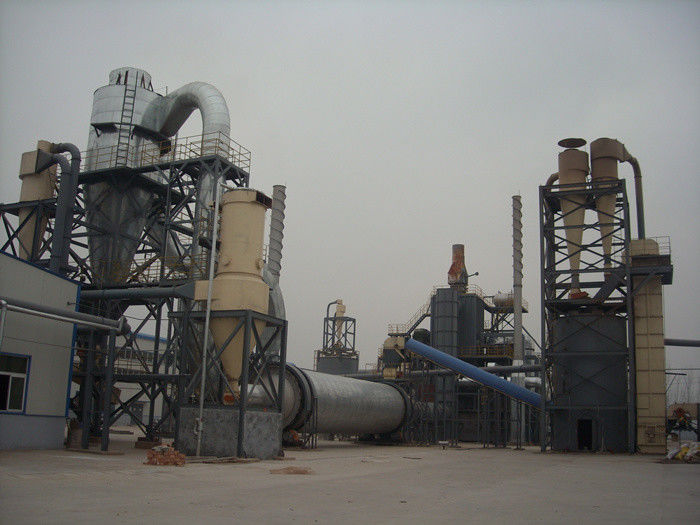

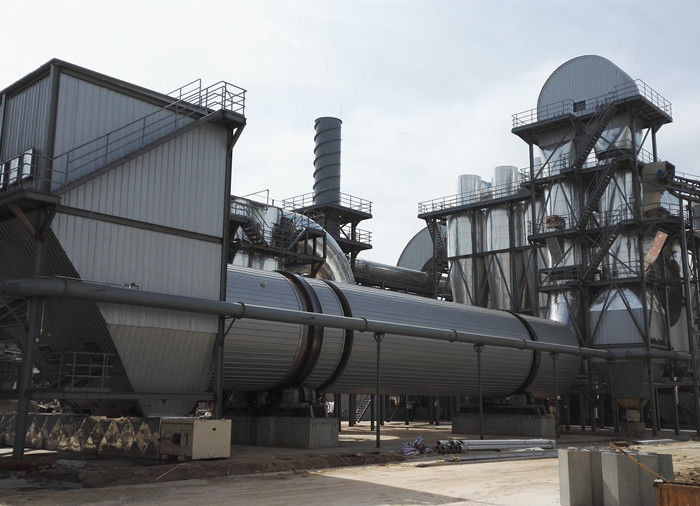

Particle Board Drum Dryer Machine 7-35Tph
7~35 Tons Per Hour Particle’s drum dryer for Paticle Board Production Line
7~35 Tons Per Hour Particle’s drum dryer for Paticle Board Production Line
Description
Wet material is fed via a rotary valve and a specially designed infeed chute into the rotating drum. There, the heat is transferred mainly through convection from the drying gases to the material for water evaporation. At the end of the drum, the material is pneumatically transported to cyclones where the material is separated from the drying gases. One portion of the drying gases is recirculated
to the mixing chamber for energy recovery and reduction of dryer exhaust volume.
Two types of drum dryer system
Main characteristics of drum dryer
- High energy efficiency, waste heat could be recycled to save energy.
- Low oxygen drying will not get fire easily, more safe.
- Particle’s shape well maintained not damaged during drying.
- Keep particle’s moisture stable.
- Large unit capacity.
Main technical data
| BGXT7 | BGXT10 | BGXT13 | BGXT15 | BGXT18 | BGXT28 | BGXT35 | |
| Capcity of flakes / t/h | 7 | 11 | 13 | 15 | 18 | 28 | 35 |
| Diameter of drum / m | 3.2 | 3.6 | 3.7 | 4 | 4.3 | 4.6 | 5 |
| Length of drum / m | 15 | 18 | 25 | 26 | 28 | 28 | 26 |
| Thermal demand / MW | ~7 | ~10 | ~12 | ~16 | ~19 | ~27 | ~34 |
| Meet the demand of particle board capacity / cbm per day | ~200 | ~300 | ~400 | ~500 | ~700 | ~1000 | ~1250 |
