High Performance 8-30mm MDF/HDF Multi-Opening Production Line (100-700m³/day)
Fully Automatic 100~700 Cbm Per Day MDF/HDF Multi-Opening Press Production Line
Description
The 180-700m³/day MDF/HDF production line uses raw material through chips preparation, fiber manufacturing, glue dosing system, forming and hot pressing, cooling &trimming and sanding section to make MDF/HDF board. The final size can be 4 x 8, 6 x 8, 6 x 9, 4 x 12, 6 x 12, 6 x 18. The MDF/HDF board has homogeneous structure, smooth surface, good machining specification and manufacture performance. It is the ideal substitute of nature wood.
1. Small Capacity: 15,000 to 20,000 m3/ year. 30,000~130,000cbm/year is also for option.
2. Size:4x8ft,6ftx9ft, 6x8ft, thickness 9~30mm.
3. Wide Raw materials range: small wood log and branches,veneer waste, wastes of wood processing mills&furniture factories.
4. Advanced single-pass drum dryer could be used. It adopts flue gas drying technology, high drying capacity, reduced engery consumption. Compared with traditional drying methods, it save 25%energy.
5. Low adhesive usage. Electronic dosing is used.
6. Mat forming adopt advanced mechnanical calssifying mat forming. The unique spiral pattern of diamond rolls ensure ideal forming performance, increase the panel quality.

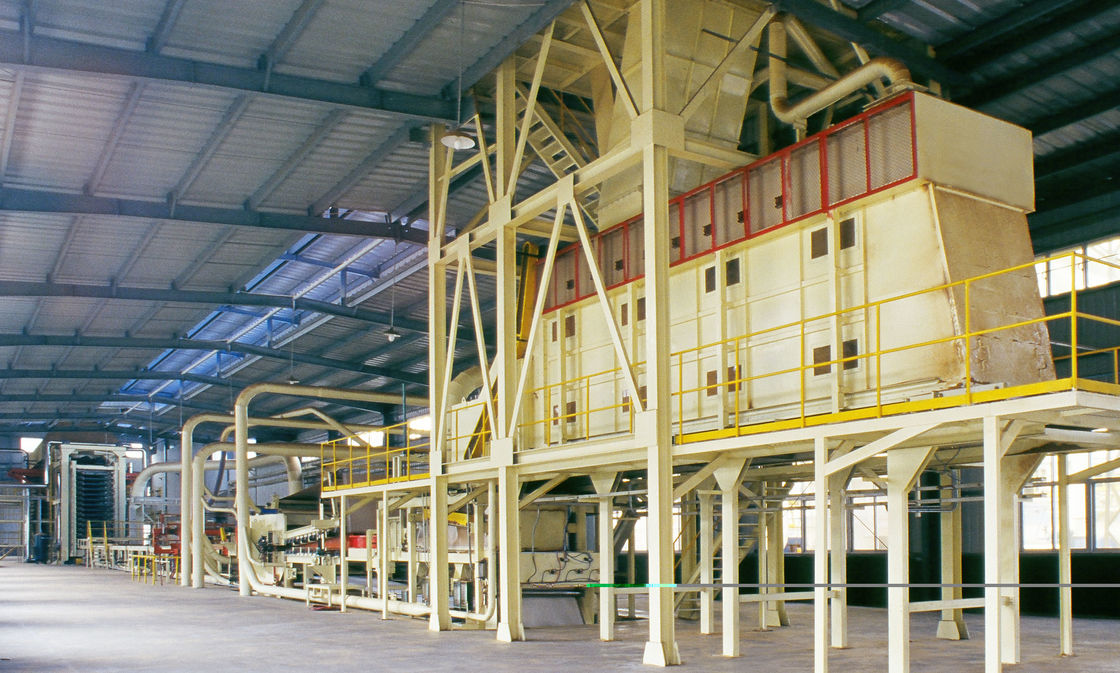

7. Multi-opening hot press with synchronized closing device, which ensures the synchronization and stability of plate moving, thus accurate panel thickness and reduce sanding amount.
8. Electrical control system: famous brand quality electric compoments and PLC control systems.
Summary of process flow
Main technical data
| Item | Unit | Specification |
| Capacity | m³/d | 100~700 |
| Width of production line | feet | 4,6 |
| Final board thickness | mm | 8~30 |
| Final board width | mm | 915~1830 |
| Final board length | mm | 1830~5490 |
| Press Layers | daylight | Max. 32 |
Key equipment of production line
