6x9ft Fully Automatic MDF/HDF Multi-Opening Line 100-700m³/day
Fully Automatic 100~700 Cbm Per Day MDF/HDF Multi-Opening Press Production Line
Description
In order to ensure a high panel quality, a pre-pressing is usually carried out before the actual pressing. The mat made of flakes, fibres or strands is pre-pressed before it is transferred to the press; this is also referred to as deaeration. This is done by belt pre-presses. These compress the mats, some of which are very thickly spread, and reduce their thickness. Preheating of the mat is also possible. This increases the production capacity.

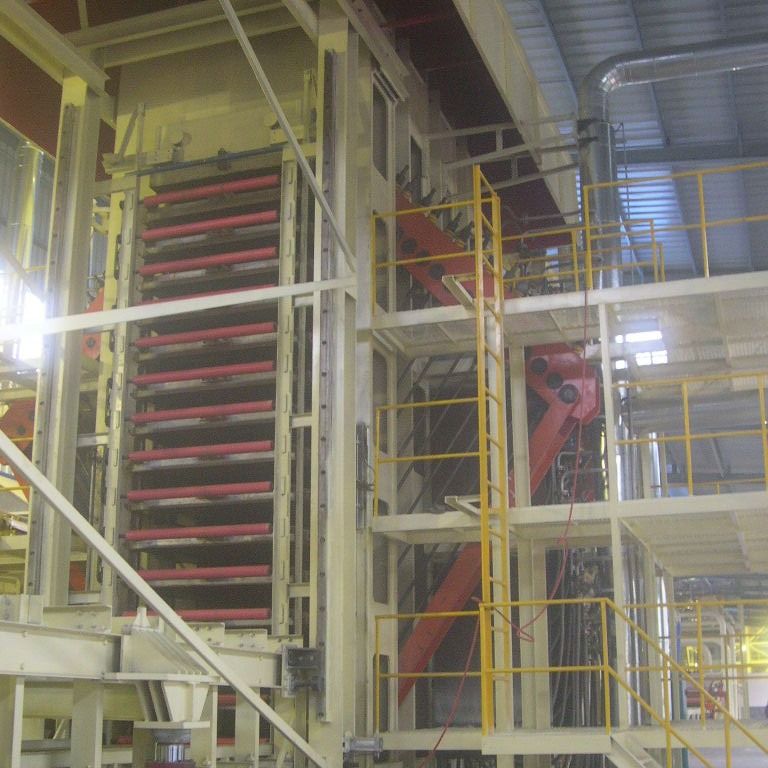

In the press, the mat is then pressed at high pressure to produce a uniform board with the desired thickness. Under the influence of pressure and temperature the glue hardens; the wood particles are also plasticized and remain permanently deformed. Two types of presses are used in the production of wood-based panels: the simpler multi-opening presses and the continuous presses. In recent years, continuous presses have become more and more popular. The advantages of this type of press are the high output as well as the elimination of idle times (in contrast to multi-opening presses), so that a very high output is possible even with thin boards. Multi-opening presses are still used for low production volumes and special products.
The 180-700m³/day MDF/HDF production line uses raw material through chips preparation, fiber manufacturing, glue dosing system, forming and hot pressing, cooling &trimming and sanding section to make MDF/HDF board. The final size can be 4 x 8, 6 x 8, 6 x 9, 4 x 12, 6 x 12, 6 x 18. The MDF/HDF board has homogeneous structure, smooth surface, good machining specification and manufacture performance. It is the ideal substitute of nature wood.
Summary of process flow
Main technical data
| Item | Unit | Specification |
| Capacity | m³/d | 100~700 |
| Width of production line | feet | 4,6 |
| Final board thickness | mm | 8~30 |
| Final board width | mm | 915~1830 |
| Final board length | mm | 1830~5490 |
| Press Layers | daylight | Max. 32 |
Key equipment of production line
