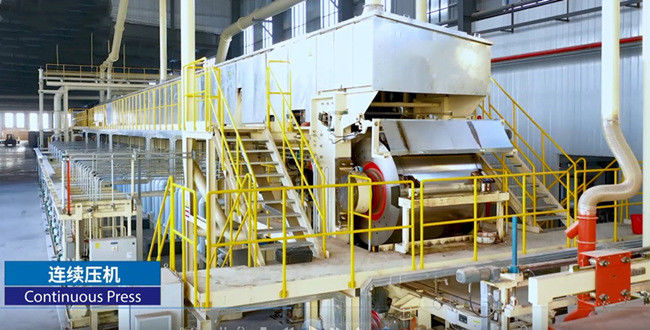

4-8 Feet Width Continuous Press Particle Board Production Line
Fully Automatic 300~1500 Cbm Per Day Particle Board Continuous Press Production Line
Description
Our press systems increase the efficiency of your production. Reduce your life cycle costs, save wood, glue and energy, and boost your throughput of high-quality PB, MDF, OSB and LVL boards. Together we’ll find the right system for your requirements – from small but reliable press solutions to the high-end CPS+ continuous press, which combines the benefits of all known continuous press systems.
The 300~1500m³/day particle board production line uses raw material through chips preparation, flakes preparation, dring and sitfting, glue dosing system, forming and hot pressing, cooling &trimming and sanding section to make particle board / chipboard. The final size can be 4 x 8, 6 x 8, 6 x 9, 4 x 12, 6 x 12, 6 x 18. The particle board has homogeneous structure, smooth surface, good machining specification and manufacture performance. It is the ideal substitute of nature wood.
Summary of process flow
Main technical data
| Item | Unit | Specification |
| Capacity | m³/d | 300~1500 |
| Width of production line | feet | 4,6,7,8,9 |
| Final board thickness | mm | 6~40 |
| Final board width | mm | 915~2800 |
| Final board length | mm | 1830~5490 |
| Press speed | mm/s | Max. 2000 |
Key equipment of production line
1 High energy efficiency and waste energy can be recycled to save energy
2 More safe due to low oxygen drying to prevent fire
3 Flaker shape will be well maintained
4 Stable flaker moisture
5 Large unit capacity
1 Large capacity and good performance
2 Frame screen box makes strong and durable
3 Brilliant elastic vibration support
4 Perfect rotary balance technology
5 Self-clean system with jumping balls
6 Stable running and long lifetime
7 Compact structure and less space required
1 Feeding crosswise— real-time regional control technology
2 Volume equal silo— ensure consistent bulk density
3 Aerodynamics— perfect balance of positive/negative pressure airflow
4 Airflow regulation system— artful combination of vertical& horizontal adjustment
5 Airflow surface forming— fine and smooth surface
6 Advanced control technology— high precision lengthwise and crosswise density
1 Crosswise feeding— real-time regional control technology
2 More delicate diamond rollers— ensure forming precision
3 Positive/negative pressure assistant airflow— ensure better fine surface
4 Core cage roller forming— uniform core mat structure
5 Advanced control technology— high precision lengthwise and crosswise density
Our products are sold all over the world, you can rest assured.
