1400 mm 5~8 Tons Per Hour Flakes Making Knife-Ring Flaker for Paticle Board Production Line
0.7~14 Tons Per Hour Flakes Making Knife-Ring Flaker for Paticle Board Production Line
Description
The Knife-ring flaker for the production of chips from particles or small waste wood. Knife-ring flakers by HOMBAK are characterised by intelligent, robust, high-availability, high-quality chip flaking to create high-quality chips for the medium range in the particle board industry.
The Knife-ring flaker is the reliable machine technology that provides an efficient, process-oriented two-stage flaking process under the most demanding production conditions - with particles processed to medium-grade chips, preferably using Drum chippers. Knife-ring flakers are connection-ready. They are delivered equipped with control technology and can be completely integrated in fully automatic processes.
The knife-ring flaker machine is one of the main machines in the preparation section of particle board production.
After the chipper cuts wood chips, bamboo chips, broken veneer, etc. into certain specifications of flakes, the knife-ring flaker makes them into flakes with certain thickness that meet the process requirements, which are used as raw materials for particle board. The flaker has formed a series of products with various specifications of knife ring diameters from 800 to 1600, which can meet the needs of particleboard production lines with an annual output of 30,000-450,000 m³.

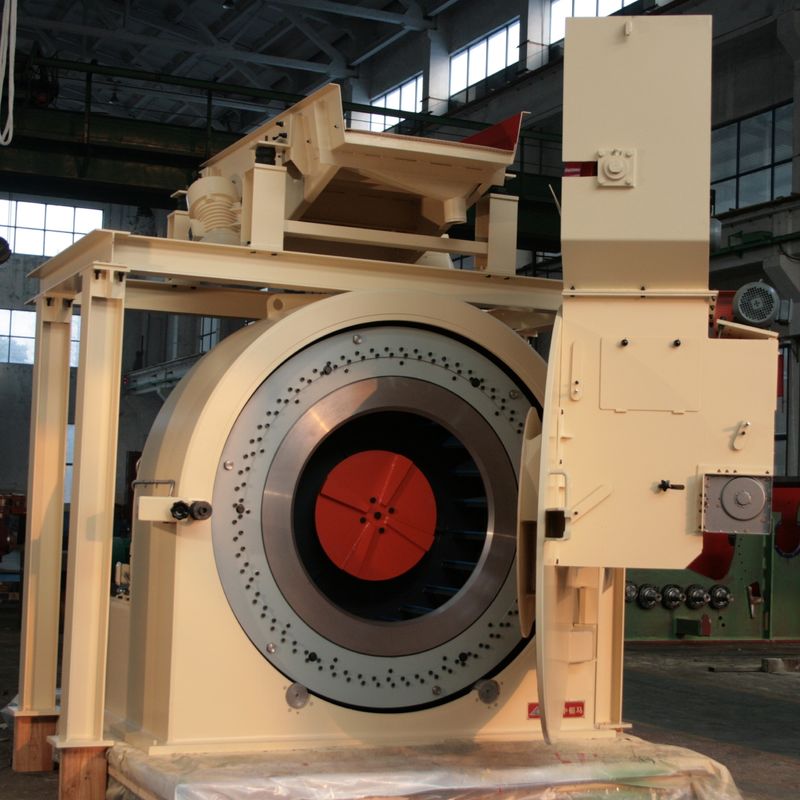

Structure of knife-ring flaker
1 Multi-stage structure for heavy object separator which will seperate wood chips with lenth of 60~120mm.
2 The adjustment device for wind to make the suspension wind speed the same.
3 Distribute wood chips uniform across the width of the knife ring.
4 Effectively control the protruding amount of the flying knife and the gap between the knife door to ensure uniform thickness of flakes.
5 New type of impeller to lower the enger consumption.
Main technical data
| BX466 | BX468 | BX4612 | BX4612/5 | BX4614/4 | BX4614/5 | BX4616/5 | |
| Diameter of knife ring / mm | 600 | 800 | 1200 | 1200 | 1400 | 1400 | 1600 |
| Amount of knife / pcs | 21 | 28 | 42 | 50 | 60 | 66 | 74/72/70 |
| Length of knife / mm | 225 | 300 | 375 | 463 | 463 | 449 | 449 |
| Amount of vane / pcs | 18 | 18 | 21 | 21/15 | 25/19 | ||
| Capcity(Solid volume) / t/h | 0.7-0.9 | 1.5-3 | 2.5-4 | 4-6 | 5-8 | 6-9 | 10-14 |
| Power of main motor / kW | 75 | 132 | 200 | 250 | 250 | 250 | 315 |
| Thickness of flakes / mm | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 | 0.4-0.8 | 0.4-0.9 | 0.4-0.9 | 0.4-0.9 |
