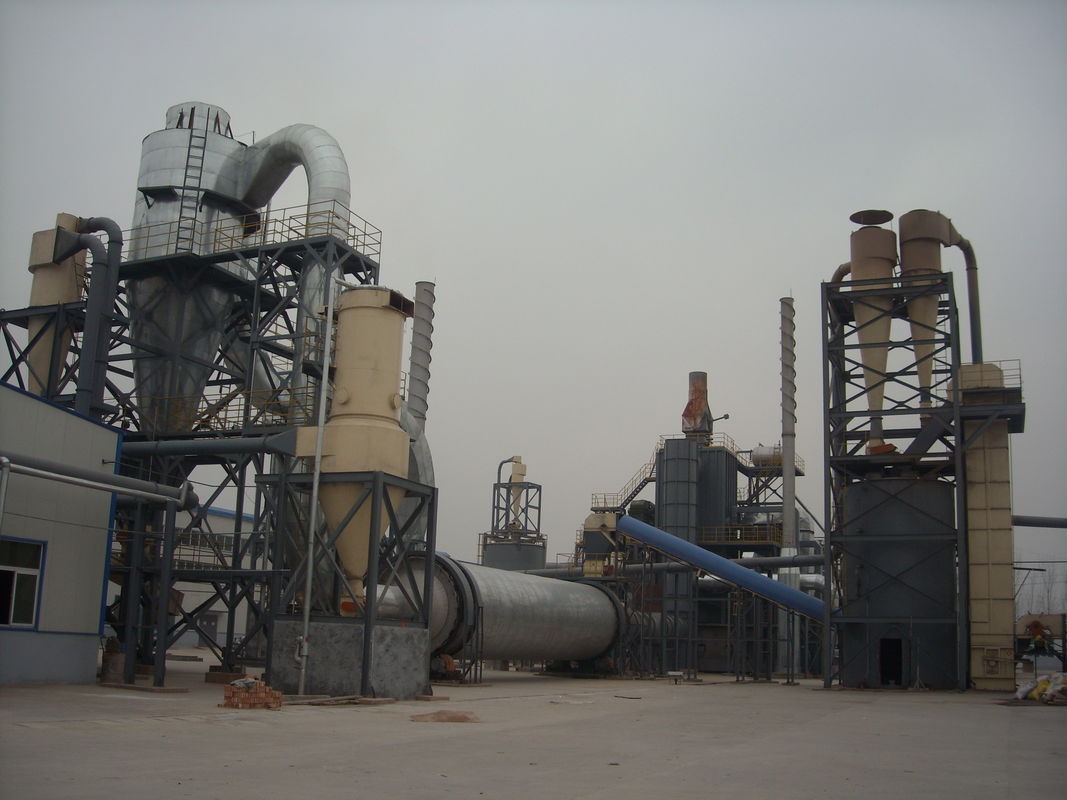

11 Tons Per Hour Particle’s drum dryer for Paticle Board Production Line
7~35 Tons Per Hour Particle’s drum dryer for Paticle Board Production Line
Description
This series of rotary drum dryer is mainly composed of cylinder, big tooth ring, pinion, support wheel, stop wheel, wheel belt, support wheel shaft and other parts. Through the triangular belt, the motor is decelerated by two stages of the reducer, and the big tooth ring is driven by the pinion to make the cylinder run at the designed speed, so that the material in the cylinder body is evenly dried.
Wet material is fed via a rotary valve and a specially designed infeed chute into the rotating drum. There, the heat is transferred mainly through convection from the drying gases to the material for water evaporation. At the end of the drum, the material is pneumatically transported to cyclones where the material is separated from the drying gases. One portion of the drying gases is recirculated
to the mixing chamber for energy recovery and reduction of dryer exhaust volume.
Two types of drum dryer system
Main characteristics of drum dryer
Main technical data
| BGXT7 | BGXT10 | BGXT13 | BGXT15 | BGXT18 | BGXT28 | BGXT35 | |
| Capcity of flakes / t/h | 7 | 11 | 13 | 15 | 18 | 28 | 35 |
| Diameter of drum / m | 3.2 | 3.6 | 3.7 | 4 | 4.3 | 4.6 | 5 |
| Length of drum / m | 15 | 18 | 25 | 26 | 28 | 28 | 26 |
| Thermal demand / MW | ~7 | ~10 | ~12 | ~16 | ~19 | ~27 | ~34 |
| Meet the demand of particle board capacity / cbm per day | ~200 | ~300 | ~400 | ~500 | ~700 | ~1000 | ~1250 |
