4-6 Feet MDF/HDF Multi-Opening Press Production Line 100-700 Cbm/Day
Fully Automatic 100~700 Cbm Per Day MDF/HDF Multi-Opening Press Production Line
Description

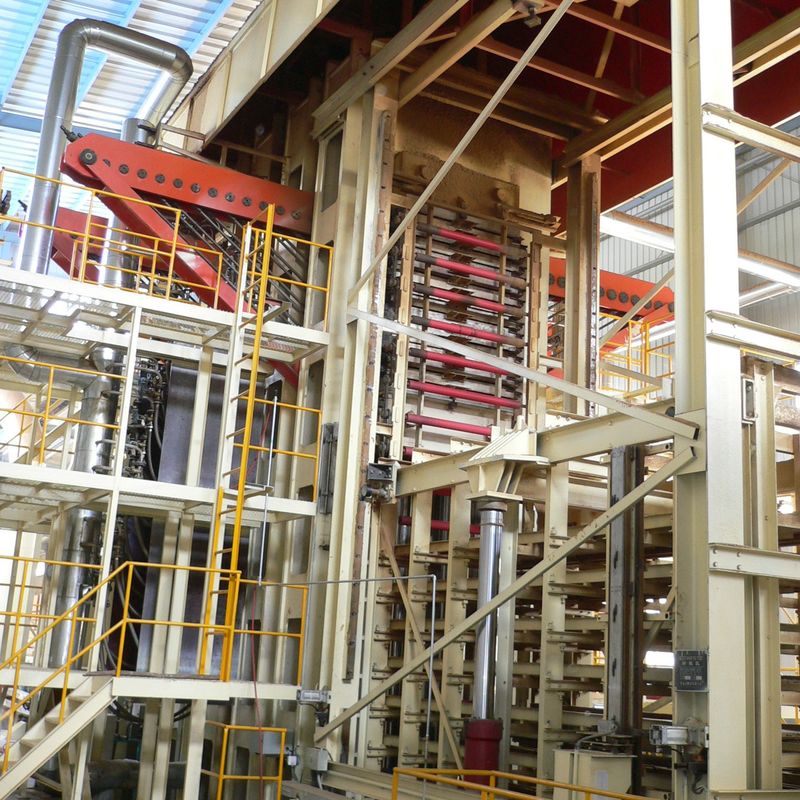

multi-daylight or multi-opening press systems. These advanced machines are ideal if you want to process very large batches of product in short cycle times. The presses are used for laminate and compact boards for exterior and interior applications, building surfaces and for the furniture, laboratory, and medical sectors.
The design of the Hymmen multi-daylight press utilizes precision-built pressing frames that ensure even pressure distribution over the entire pressing surface. The heating plates are built for optimal heat flow, and the upper sheet clamping guarantees safe positioning of the material, which eliminates product damage.
The 180-700m³/day MDF/HDF production line uses raw material through chips preparation, fiber manufacturing, glue dosing system, forming and hot pressing, cooling &trimming and sanding section to make MDF/HDF board. The final size can be 4 x 8, 6 x 8, 6 x 9, 4 x 12, 6 x 12, 6 x 18. The MDF/HDF board has homogeneous structure, smooth surface, good machining specification and manufacture performance. It is the ideal substitute of nature wood.
Summary of process flow
Main technical data
| Item | Unit | Specification |
| Capacity | m³/d | 100~700 |
| Width of production line | feet | 4,6 |
| Final board thickness | mm | 8~30 |
| Final board width | mm | 915~1830 |
| Final board length | mm | 1830~5490 |
| Press Layers | daylight | Max. 32 |
Key equipment of production line
