100-700Cbm/Day MDF/HDF Multi-Opening Press Line 4-6 Feet Width
Fully Automatic 100~700 Cbm Per Day MDF/HDF Multi-Opening Press Production Line
Description
The 180-700m³/day MDF/HDF production line uses raw material through chips preparation, fiber manufacturing, glue dosing system, forming and hot pressing, cooling &trimming and sanding section to make MDF/HDF board. The final size can be 4 x 8, 6 x 8, 6 x 9, 4 x 12, 6 x 12, 6 x 18. The MDF/HDF board has homogeneous structure, smooth surface, good machining specification and manufacture performance. It is the ideal substitute of nature wood.
For attaching sheet-like materials, a flat plate press or a roll press for continuous production can be used. However, product quality by a roll press will not reach the level of a batch type flat plate press in terms of high flatness accuracy and dimensional accuracy, and uniformity of heat and pressure history.

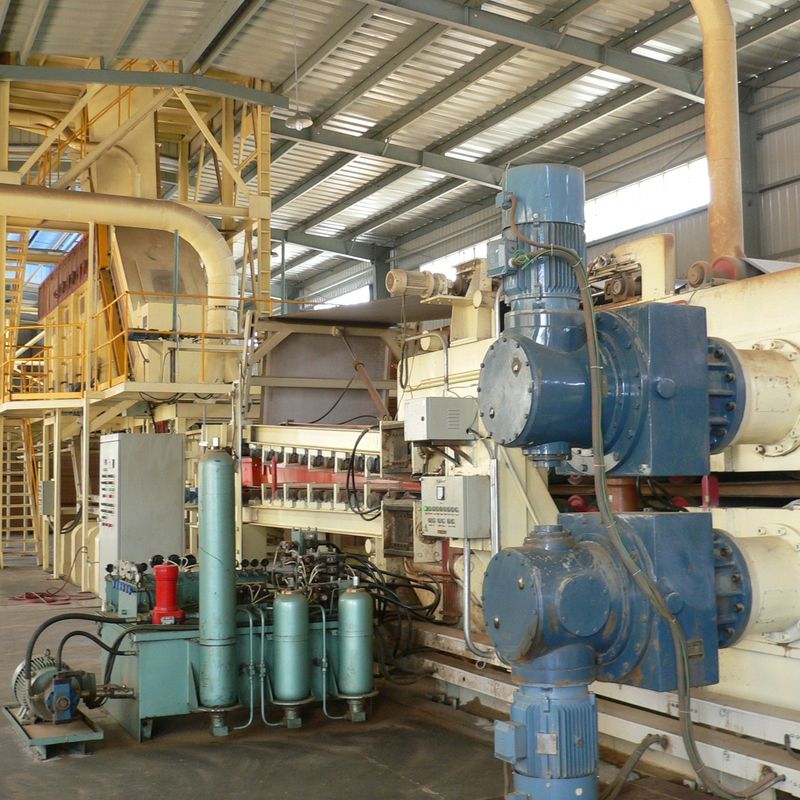

The multi-opening press machine was designed to be able to form multiple products simultaneously for increased productivity with the same product quality as the batch type flat plate press.
When attaching using thermosetting resin, heating and pressing for the specified time are required until the resin is hardened, so laminating time cannot be shortened.
The multi-opening press machine can increase productivity through simultaneous laminating by using multiple openings.
Furthermore, for attaching thin layer materials, multiple laminating products are stacked and loaded in one opening, and products of the number of openings × loading number can be produced simultaneously. If materials for 20 products are loaded for each opening of a 20-opening press, 400 products can be formed at one time.
Summary of process flow
Main technical data
| Item | Unit | Specification |
| Capacity | m³/d | 100~700 |
| Width of production line | feet | 4,6 |
| Final board thickness | mm | 8~30 |
| Final board width | mm | 915~1830 |
| Final board length | mm | 1830~5490 |
| Press Layers | daylight | Max. 32 |
Key equipment of production line
