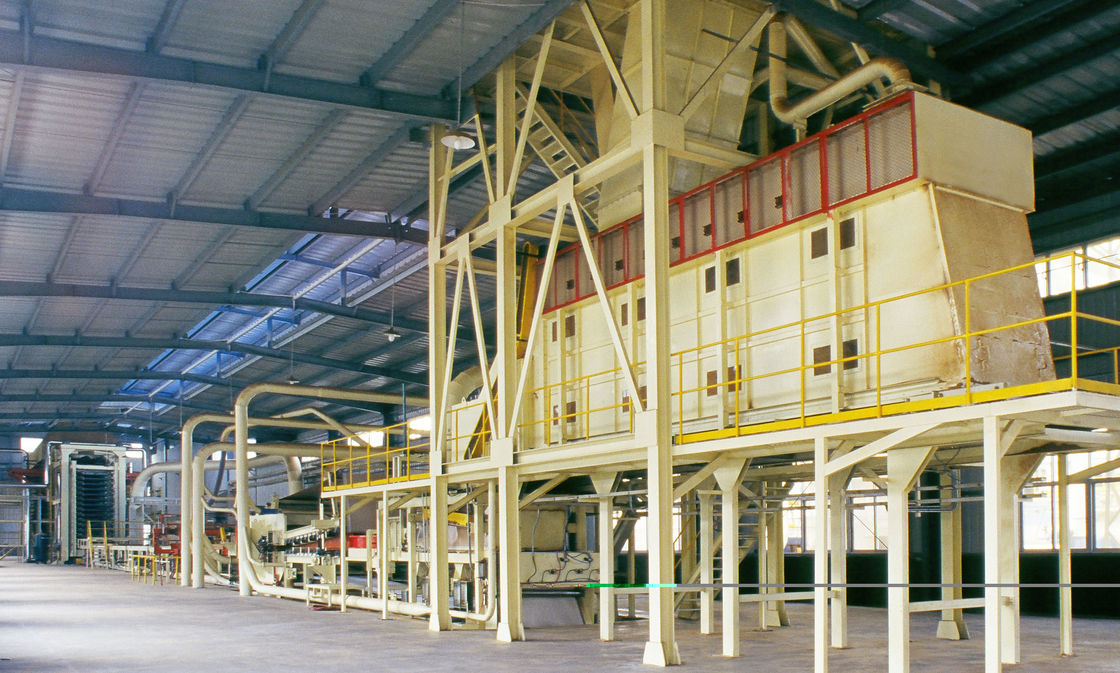

High Performance 8-30mm MDF/HDF Multi-Opening Production Line (100-700m³/day)
Fully Automatic 100~700 Cbm Per Day MDF/HDF Multi-Opening Press Production Line
Description
The 180-700m³/day MDF/HDF production line uses raw material through chips preparation, fiber manufacturing, glue dosing system, forming and hot pressing, cooling &trimming and sanding section to make MDF/HDF board. The final size can be 4 x 8, 6 x 8, 6 x 9, 4 x 12, 6 x 12, 6 x 18. The MDF/HDF board has homogeneous structure, smooth surface, good machining specification and manufacture performance. It is the ideal substitute of nature wood.
Other than printed circuit boards, multi-opening press machines are also used for film laminating and resin sealing for sensors and heaters, and production of resin plates and rubber products by using metal molds.
Conventionally, large non-vacuum press machines have been widely used for production of plywood and decorative plywood such as veneer boards, sliced veneer and melamine boards, and sandwich panels and other building materials and structural materials.
Research and development have been conducted to apply multi-opening press machines to laminating of thermoplastic CFRP laminates which are light-weight material and have recently attracted attention, and future advancements are expected.
Summary of process flow
Main technical data
| Item | Unit | Specification |
| Capacity | m³/d | 100~700 |
| Width of production line | feet | 4,6 |
| Final board thickness | mm | 8~30 |
| Final board width | mm | 915~1830 |
| Final board length | mm | 1830~5490 |
| Press Layers | daylight | Max. 32 |
Key equipment of production line
