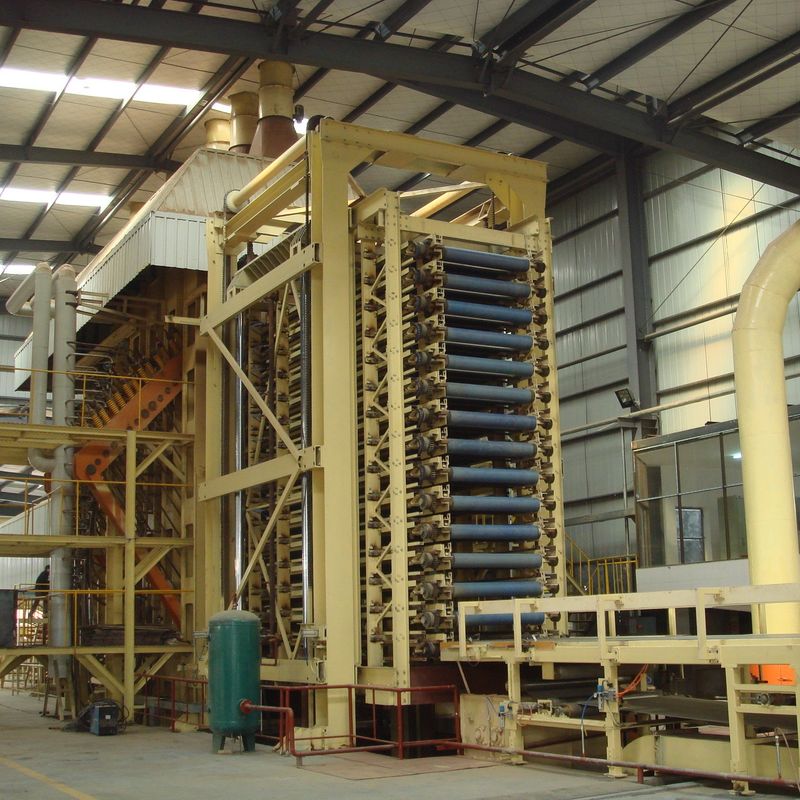

4x8ft Fully Automatic MDF/HDF Multi-Opening Line 100-700m³/day
Fully Automatic 100~700 Cbm Per Day MDF/HDF Multi-Opening Press Production Line
Description
The 180-700m³/day MDF/HDF production line uses raw material through chips preparation, fiber manufacturing, glue dosing system, forming and hot pressing, cooling &trimming and sanding section to make MDF/HDF board. The final size can be 4 x 8, 6 x 8, 6 x 9, 4 x 12, 6 x 12, 6 x 18. The MDF/HDF board has homogeneous structure, smooth surface, good machining specification and manufacture performance. It is the ideal substitute of nature wood.
Standard Press Features:
PLC Control with digital operator interface
Meets or exceeds OSHA regulations for safety
Heavy duty industrial design with 4 to 1 safety factor
Guarding to individual specifications with E-Stop circuits
Minimal deflection design
Overload protection
NEMA rated panels
Oil cooler
JIC/NFPA standard components
IEC rated electric components
Summary of process flow
Main technical data
| Item | Unit | Specification |
| Capacity | m³/d | 100~700 |
| Width of production line | feet | 4,6 |
| Final board thickness | mm | 8~30 |
| Final board width | mm | 915~1830 |
| Final board length | mm | 1830~5490 |
| Press Layers | daylight | Max. 32 |
Key equipment of production line
