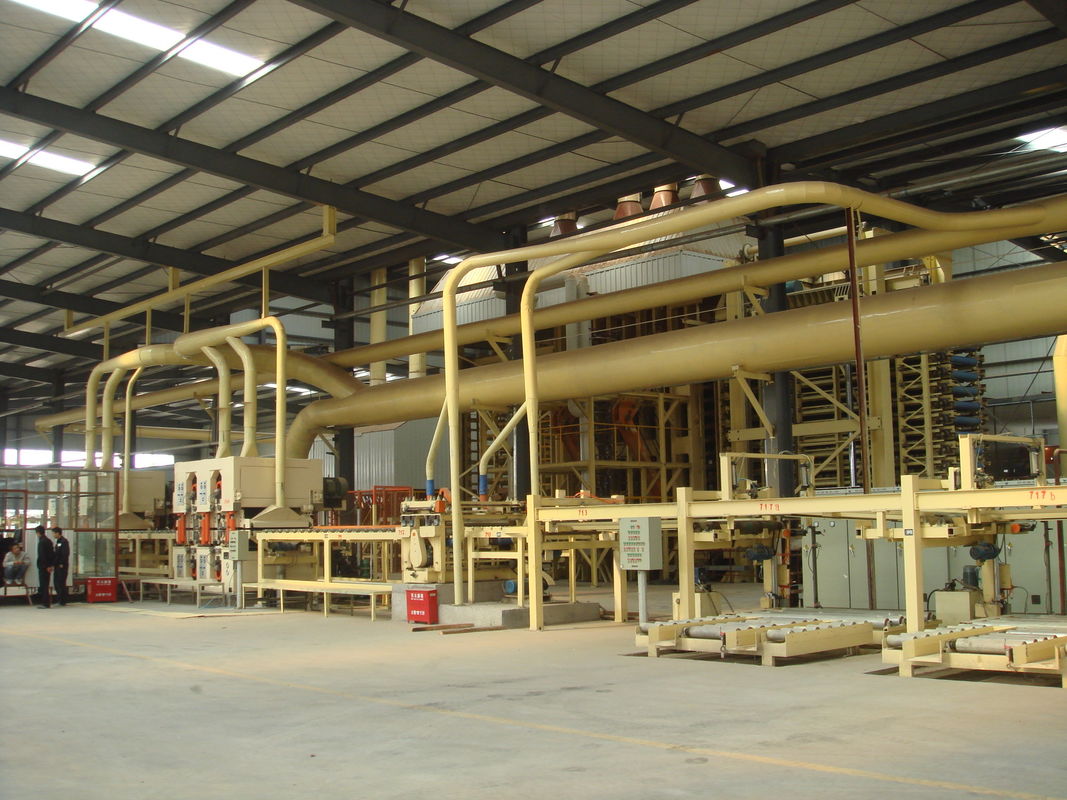

6x18ft Fully Automatic MDF/HDF Multi-Opening Line 100-700m³/day
Fully Automatic 100~700 Cbm Per Day MDF/HDF Multi-Opening Press Production Line
Description
Presses for PB, MDF and OSB:
we have built a great number of lines with single, double and multi-opening presses having capacity output range from 50 up to 1,000 m3/day, thus satisfying customers’ more different requests in terms of sizes, thickness and product quality. Among the several technical innovations in this field can be mentioned, the electronic space bars to control the given board thickness without manual operations, the new hydraulic circuits to minimize dead times and to regulate the pressing according to the board size, and the powerful and sophisticated continuous pre-compressor.
In the field of lines for MDF production has developed its expertise in designing presses of gigantic dimensions with massive capacity, up to 1000 m3/day. The press lines, designed in the latest years, have given the Company the opening to develop a unique and complete product line.
The 180-700m³/day MDF/HDF production line uses raw material through chips preparation, fiber manufacturing, glue dosing system, forming and hot pressing, cooling &trimming and sanding section to make MDF/HDF board. The final size can be 4 x 8, 6 x 8, 6 x 9, 4 x 12, 6 x 12, 6 x 18. The MDF/HDF board has homogeneous structure, smooth surface, good machining specification and manufacture performance. It is the ideal substitute of nature wood.
Summary of process flow
Main technical data
| Item | Unit | Specification |
| Capacity | m³/d | 100~700 |
| Width of production line | feet | 4,6 |
| Final board thickness | mm | 8~30 |
| Final board width | mm | 915~1830 |
| Final board length | mm | 1830~5490 |
| Press Layers | daylight | Max. 32 |
Key equipment of production line
