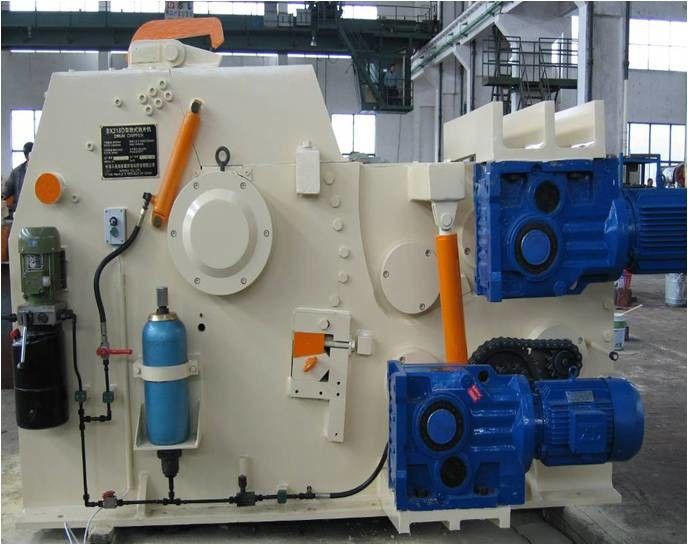

800 mm Rotor Diameter Drum Chipper Capacity of 38 m³ /h
Prouduction Desciription
Our company has a longstanding tradition of manufacturing drum chippers. The product is in high demand from both domestic and overseas customers, thanks to its excellent performance, superior quality and other notable benefits. The drum chipper is a specialised piece of machinery designed to produce perfectly chopped chips. Our product is used in a variety of industrial settings, including paper mills, particle board mills, fibre board mills and wood chip mills. The drum chipper is designed to chop logs and small wood into high-quality chips of uniform length and thickness. It is also suitable for chipping branches and twigs, planks, and other similar materials. The chip length can be adjusted according to the specific requirements of paper mills, particle board and fibre board industries. In response to this need, our company has recently upgraded various types of drum chippers, and the new models offer enhanced capabilities. These features demonstrate that it is an optimal chip production equipment suitable for global deployment.
Main technical data
| Speciifcations/Model | BX218D |
| Rotor diameter (mm) | 800 |
| Number of rotor knives (pieces) | 2 |
| Feed opening (mm) | 240x750 |
| Max diameter of raw material (mm) | 160 |
| Chip length (mm) | 30 |
| Capacity (m3/h) | 38 |
| Main drive motor power (kW) | 132 |
| Feed roller motor power (kW) | 4x2 |
| Pump motor power (kW) | 0.55 |
| Machine net weight (kg) | 7300 |
| Overall dimension/LxWxH (mm) | 4670x2150x1500 |
Main compose of drum chipper
The machine's foundation boasts a robust welding framework, utilizing high-strength steel plates as its primary structural backbone, ensuring overall machine stability. The precision-crafted knives (ranging from 2 to 4) are securely mounted onto the roller via a clamping plate, secured by specialized knife bolts. The upper feed roller assembly, aided by an advanced hydraulic system, dynamically adjusts its position over the workpiece, floating up or down within a predetermined range based on material thickness, optimizing cutting efficiency. Post-processing, wood chips traverse through screening apertures at the machine's base, with oversized particles undergoing a secondary chipping process within the unit.
The integrated hydraulic system serves as the lifeblood of the machine, with the oil pump efficiently delivering pressurized oil to the cylinders. This facilitates seamless drum cover opening for swift knife replacement, while also elevating the upper feed roller for precise adjustment of the gap between the rotating and bed knives. Furthermore, it simplifies the process of exchanging comb plates, enhancing overall maintenance ease and reducing downtime.
Main characteristics of drum chipper
Versatile in Material Handling: Our drum chipper exhibits broad compatibility, adept at processing both wood and non-wood materials.
Comprehensive Quality Assurance: From conception to delivery and beyond, we adhere to rigorous quality standards.Leveraging decades of expertise and adhering to stringent industry norms, we meticulously select raw materials and ensure that all outsourced components undergo stringent quality checks. The integration of premium domestic and international electrical and hydraulic components, along with the utilization of large-scale precision equipment, underscores our commitment to delivering high-quality chippers
Cost-Effective Operation: Our chipper's design prioritizes ease of maintenance and rapid serviceability, ultimately translating to reduced operational expenses for our customers.
Our products are sold all over the world, you can rest assured.
